Award-Winning Heritage

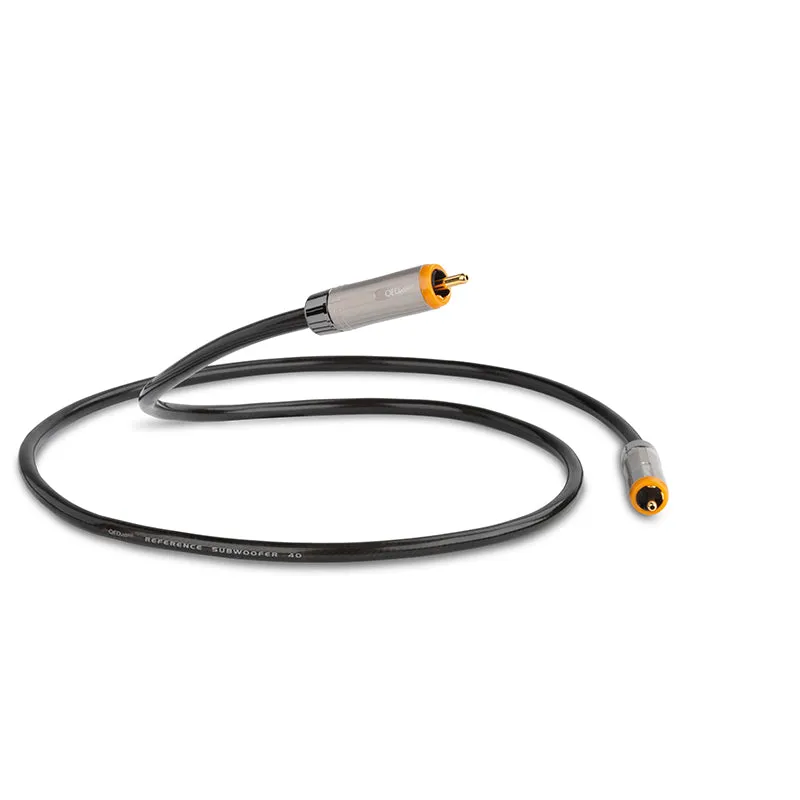

QED has won more What Hi-fi Awards than any other single brand. With the Reference cable range, this heritage is delivered directly and without compromise. All QED cables are designed using the top-down principle with Reference Subwoofer 40 representing the pinnacle of musical performance.

Floating Internal Ferrite Jacket

Absorbs high-frequency noise signal components outside the audio band. When measured using high-frequency measurement equipment, Audio 40 products convey a comparably cleaner and tighter signal pattern when its special Zn/Mn ferrite jacket is present. This has a beneficial effect on audio signal micro-timing and may account for the clear preference expressed for the ferrite jacket in listening tests...

Just Listen

Silver-plated signal carriers, effective high-quality shielding and low eddy current plugs all combine to create audible sonic improvements. We urge you to compare it not only to your favourite cable but also to alternative brands and models at any price!

Analoc RCA Plugs

This all new locking design features small high purity gold plated copper conductors in place of the usual large volume brass body found in ordinary "high quality" plugs. This cuts down or eliminates the tendency for the changing magnetic field in the conductor to induce eddy currents which are thought to affect the micro timing of the audio signal. Coupled with its hollow central pin, which is designed to combat the skin effect in the same way as our X-Tube speaker cables, the new QED Analogue plug maintains the fidelity of the audio signal from start to finish.

Complementary Conductor Technology

Improves timing and detail, retaining the rhythm of the original piece - vital when it comes to the "bottom end." Unlike conventional analogue interconnects, Reference Audio 40 uses two silver plated 99.999% Oxygen Free Copper conductors of different diameters to carry the same audio signal. This has the effect of providing an alternative signal path for more subtle audio components which might otherwise become time smeared in a single audio pathway. Reference Sub Woofer 40 is further optimised by having a 25% smaller diameter than Reference Audio 40 making it more convenient for those long runs around the room.

Specifications

QED Complementary Conductor Technology^TM with 99.99% Silver Plated Oxygen Free Copper

Zn/Mn ferrite jacket to absorb high-frequency noise signals

Low losses foamed polyethylene (PE) dielectric

99.999% Oxygen Free Copper braid for 100% electromagnetic screening coverage in a coaxial geometry

Twinleaf 24c Gold plated QED Analoc^TM RCA plugs featuring high purity copper contacts, hollow centre pin, and low eddy current design

Conductor Section 0.30 mm²

Parallel Capacitance 124 pF/m

Loop Resistance 0.076 Ohm/m

Loop Inductance 0.33 μH

Dissipation Factor @ 10 kHz 0.0210

Outside Diameter 6 mm

QED Lifetime Guarantee

OVERALL PERFORMANCE

Analoc™ Technology

QED ‘Analoc™ RCA plug which features high purity copper signal and ground connections in an insulated low eddy current brass body. The hollow central pin eliminates skin effect in the signal connection and the locking barrel design clamps the dual tombstone ground connection firmly to the RCA sockets.

Complementary Conductor Technology

Complementary conductor geometry utilises two conductors of different diameters to carry the same audio signal. This has the effect of providing an alternative path for high frequency audio components which might otherwise become time smeared in a single audio pathway.

Ferrite Insulation Technology

Like putting wooden wheels on a Ferrari, conventional RCA phono plugs have the potential to undo all of the hard work carried out by our carefully designed cordage. With Animate and Analog RCA plugs, the fidelity of the audio signal is maintained form start to finish.
